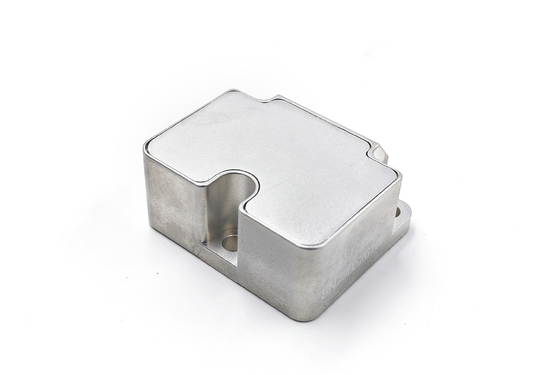

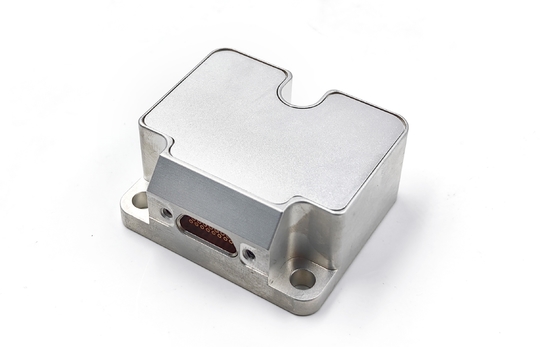

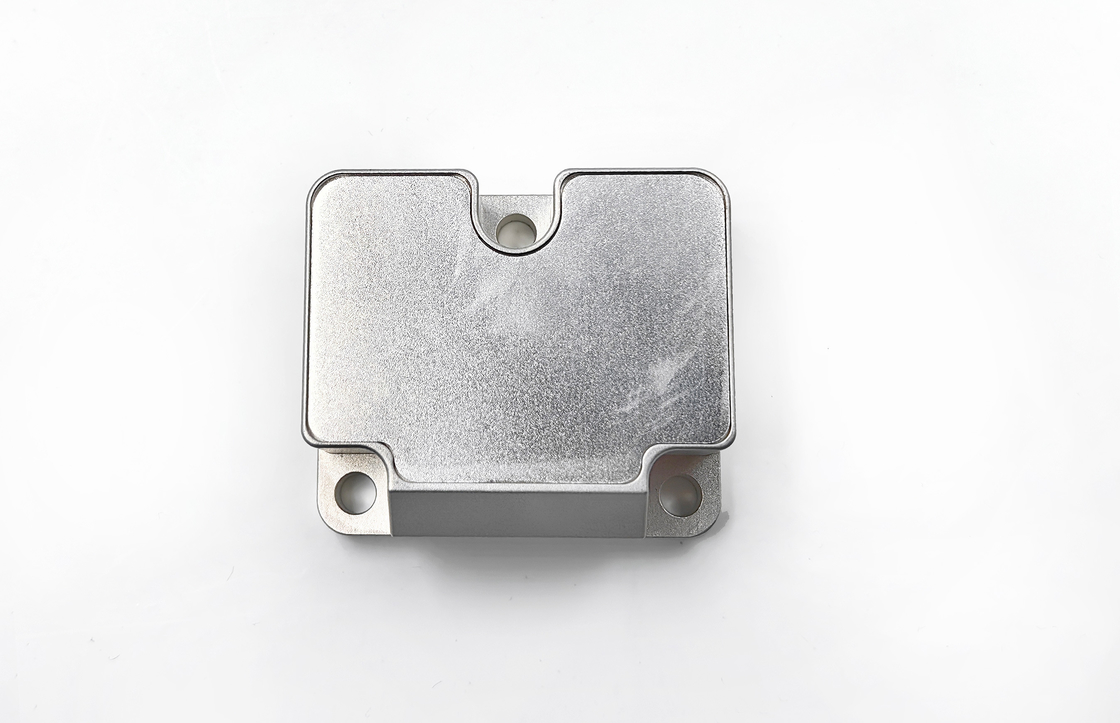

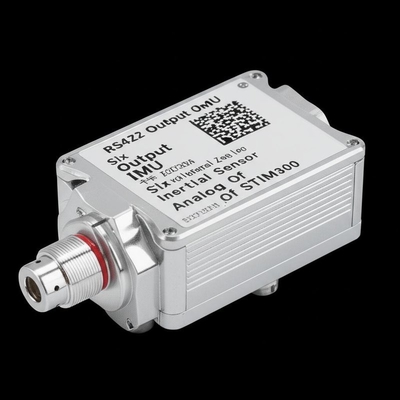

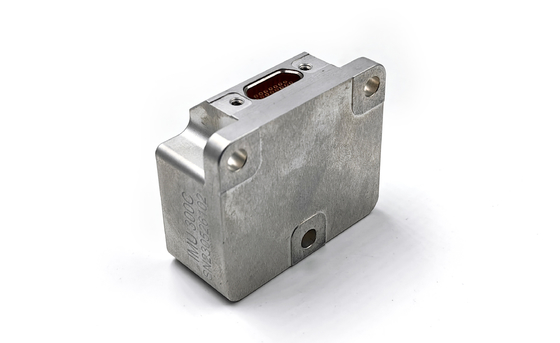

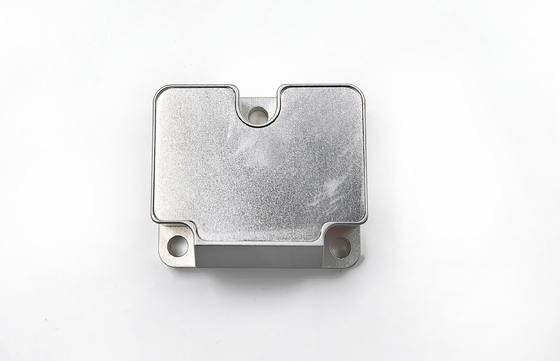

RS422 Output IMU Six Output Inertial Sensor Analog Of STIM300

Nombre De La Marca:	AVIC
Número De Modelo:	La UIM300C
Cuota De Producción:	1
Precio:	Negociable
Condiciones De Pago:	T/T, L/C
Capacidad De Suministro:	500/MONTH

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

China.

Certificación:

CE ROHS

Nombre del producto:

Unidad de medición inercial

rango de medición del giroscopio:

±500º/s

Estabilidad de polarización cero del giroscopio:

0.3 grados por hora

Caminata aleatoria angular:

0.06 grados /√h

Gama del acelerómetro:

16G

Estabilidad del sesgo acc:

0.02 mg

Factor de escala:

0.02%FS

Ancho de banda:

200HZ

Producción:

RS422

Detalles de empaquetado:

esponja/caja

Capacidad de la fuente:

500/MONTH

Descripción del Producto

RS422 Output IMU Six Output Inertial Sensor Analog Of STIM300

Electrical interface

The electrical connector of IMU300C-A0-IMU product is J30J-15 TJL, and the specific contact definition and allocation are shown in the following table:

Stitch number	Name	Type	Remark
1	TxD-	Output	RS422
2	RxD-	Input	RS422
3	TST_1	Output
4	TOV_1	Output
5	RST	Input
6	GND	Input
7	Spare
8	VCC_5V	Power source	+5v
9	TxD+	Output	RS422
10	RxD+	Input	RS422
11	ExtTrig	Input	Synchronous input 5V
12	GND	Input
13	GND	Input
14	Spare
15	GND	Power ground

Product features

Three-axis digital gyroscope:
1. ± 500º/s dynamic measuring range;
2. Zero-bias stability: 3 °/H (GJB, 10s), 0.3 °/H (ALLAN);
Triaxial digital accelerometer:
1. ± 16 G dynamic measuring range;
2. Zero-bias stability: 0.1mg (GJB, 10S), 0.02mg (ALLAN);
High reliability: MTBF > 20000h;
Guaranteed accuracy within the full temperature range (-40 ℃ ~ 80 ℃): built-in high-performance temperature calibration and compensation algorithm;
Suitable for working under strong vibration conditions;
Interface 1-way RS422
Compatible with STIM300

Field of application

Tactical and Industrial UAV
Smart Munitions
Seeker

Product indicators

Parameter		Test conditions	Design accuracy	Unit
Gyro	Dynamic measuring range	-	±500	º/s
	Bias stability	Allan variance (500 °/s range, normal temperature)	0.3	º/h
	Bias stability	10 s average (-40 ℃ ~ + 80 ℃, constant temperature),	3.0	º/h
	Bias	Zero-bias range	0.1	º/s
		Zero-bias variation over full temperature range	0.01	º/s
		Start repeatability	0.005	º/s
		Effect of linear acceleration on bias	0.002	º/s/g
		Influence of vibration on Bias, change before and after vibration	0.002	º/s/g
		Influence of vibration on Bias, change before and during vibration	0.001	º/s/g
	Scale factor	Scale factor accuracy	0.1	%
	Scale factor	Scale factor nonlinearity	0.01	%FS
	Angular random walk	-	0.06	°/√hr
	Bandwidth	-	200	Hz
Accelerometer	Dynamic measuring range	-	16	g
	Bias stability	Allan variance (16g range, normal temperature)	0.02	mg
	Bias stability	10 s average (-40 ℃ ~ + 80 ℃, constant temperature)	0.03	mg
	Bias	Zero-bias range	1	mg
		Zero-bias variation over full temperature range	1	mg
		Start repeatability	0.2	mg
	Scale factor	Scale factor accuracy	0.3	%
	Scale factor	Scale factor nonlinearity	0.02	%FS
	Speed random walk	-	0.08	m/s/√hr
	Bandwidth	-	200	Hz
Communication interface	1-way SR422	Baud rate	460.8	MHz
Communication interface	Sampling frequency	UART	1000	Hz
Electrical characteristics	Voltage	-	5	V
	Power consumption	-	1.5	W
	Ripple	P-P	150	mV
Structural characteristics	Size	-	38.6×44.6×21.5	mm
Structural characteristics	Weight	-	65±2	g
Use environment	Operating temperature	-	-40~80	℃
	Storage temperature	-	-45~85	℃
	Vibration	-	20~2000Hz,6.06g
	Impact	-	6000g,0.5ms
Reliability	MTBF	-	20000	h
Reliability	Continuous working time	-	120	h

Product overview

The IMU300C-A0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.
IMU300C-A0-IMU features high reliability and strong environmental adaptability. By matching different software, the product can be widely used in tactical and industrial UAV, smart ammunition, seeker and other fields.

Size

IMU300C user manual.pdf
