Honeywell HG4930 6-DoF IMU with ±200°/s Gyro and ±30g Accelerometer

Honeywell HG4930 6-DoF IMU with ±200°/s Gyro and ±30g Accelerometer

Nombre De La Marca:	FIREPOWER
Número De Modelo:	HG4930C
Cuota De Producción:	1
Precio:	6500$
Condiciones De Pago:	L/C, D/P, T/T, Western Union
Capacidad De Suministro:	1 semana para la muestra

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

Rango de medición girodinámico:

± 200 °/s (personalizable)

Estabilidad de sesgo cero (@ Allan variance):

≤ 0,2 °/h

Estabilidad de sesgo cero ((10s suave):

≤0.5 °/h

Paseo al azar:

0.02°/√h

Ancho de banda:

100Hz

Rango de acc:

±30g

Acc Estabilidad de sesgo cero (varianza de Allan):

30g

Voltaje:

Vibración:

10 ~ 2000Hz ， 6.06g

Peso:

120 g

Detalles de empaquetado:

Esponja + cartón

Capacidad de la fuente:

1 semana para la muestra

Resaltar:

Honeywell HG4930 IMU sensor

6-DoF IMU with gyro

IMU accelerometer with warranty

Descripción del Producto

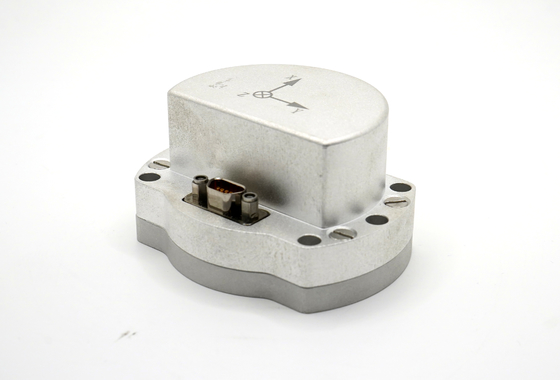

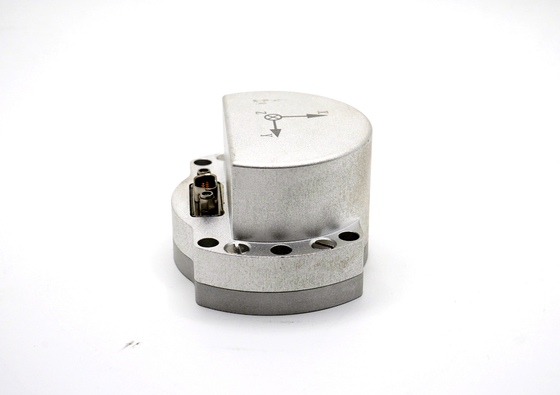

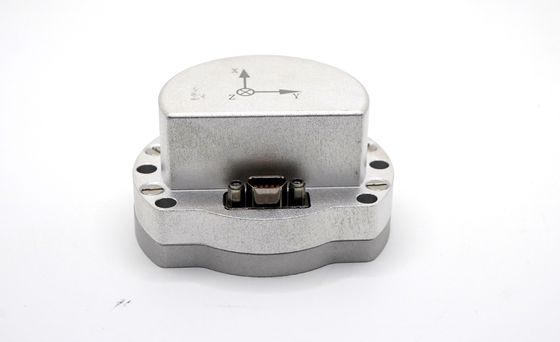

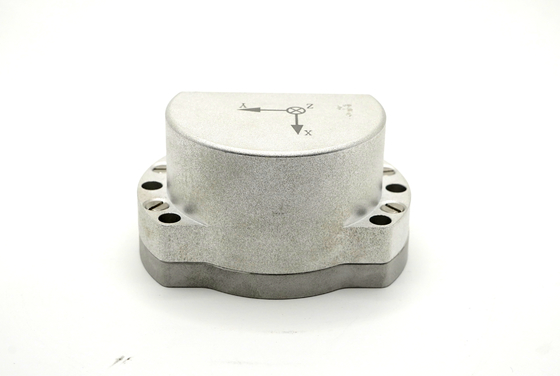

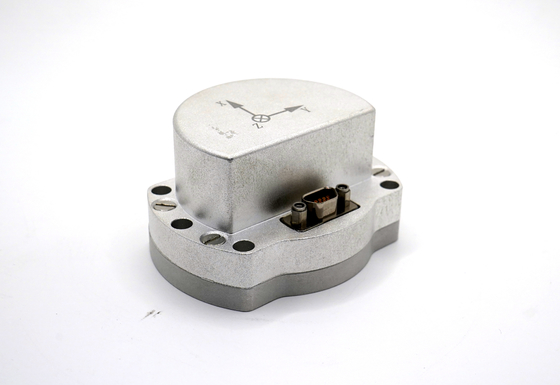

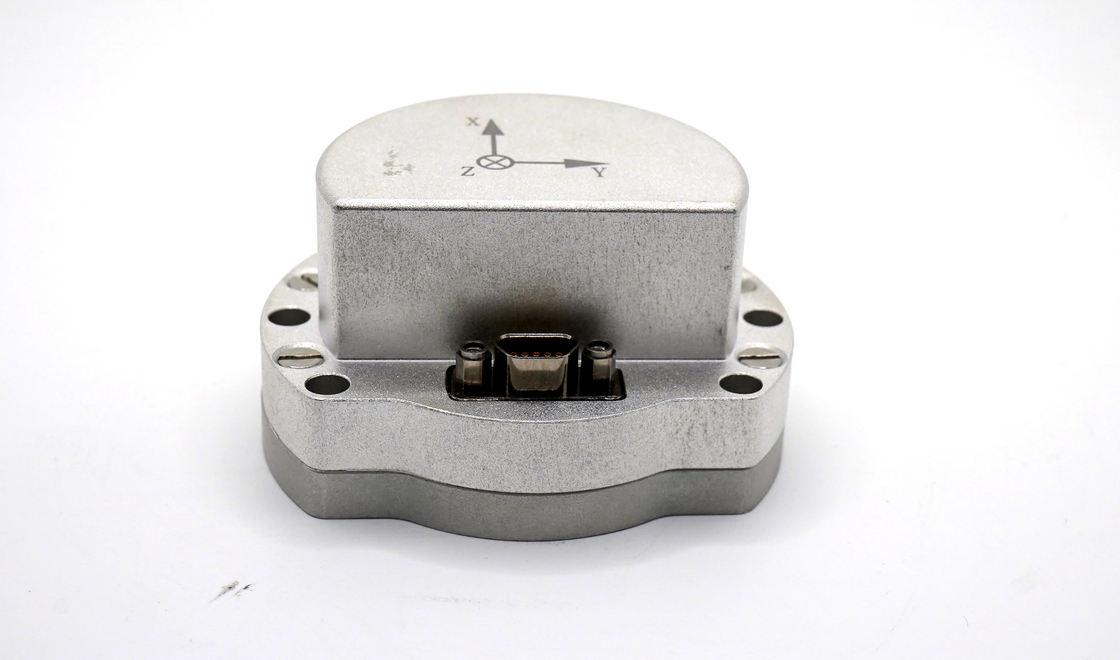

Honeywell HG4930 6-DoF Inertial Measurement Unit with Integrated Gyroscope and Accelerometer

The Honeywell HG4930 is a tactical grade MEMS Inertial Measurement Unit replacement designed for high-performance applications. This compact and rugged navigation sensor is engineered for demanding environments across aerospace, defense, UAVs, robotics, marine, and industrial automation sectors.

Key Features

Integrated three-axis gyroscope and three-axis accelerometer
Built-in temperature sensor for environmental compensation
Advanced signal processing board for real-time motion data
Durable mechanical structure for harsh environments
Precise measurement of angular rate, linear acceleration, and inclination angles
Temperature correction and installation misalignment compensation
Nonlinear behavior correction for stable, accurate information
Reliable performance under high dynamics and extreme conditions

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
