16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Nombre De La Marca:	Firepower
Número De Modelo:	FPD24005-66 y sus derivados
Cuota De Producción:	1
Precio:	Negociable
Condiciones De Pago:	L/C, T/T
Capacidad De Suministro:	500/mes

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

PORCELANA

Nombre del producto:

Receptor de la antena

Interferencia unidireccional:

mejor que 85 dBc

Interferencias multidireccionales:

mejor que 65 dBc

Espacio aéreo anti-bloqueo:

el azimut: 0 ° ~ 360 °, la altura: -90 ° ~ 90 °

Dimensión:

Se aplicará el método de medición de la velocidad.

Consumo de energía:

Peso:

< 150 g

Capacidad de la fuente:

500/mes

Resaltar:

16-array anti-jamming antenna

satellite ground station antenna

fiber optic gyro calibration antenna

Descripción del Producto

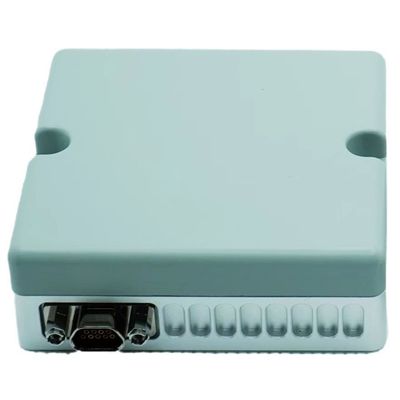

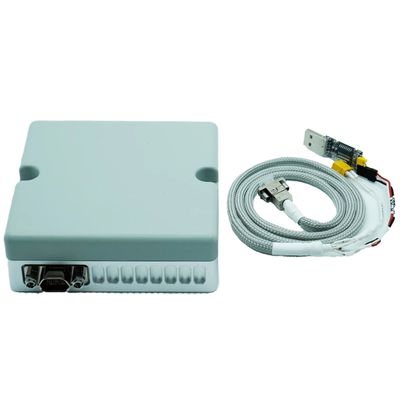

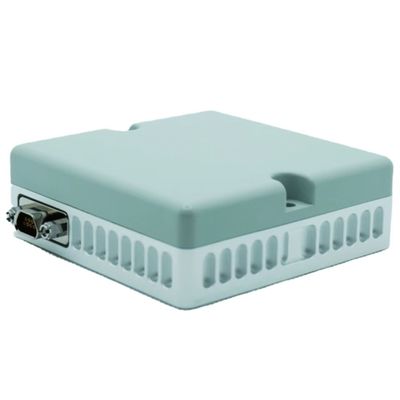

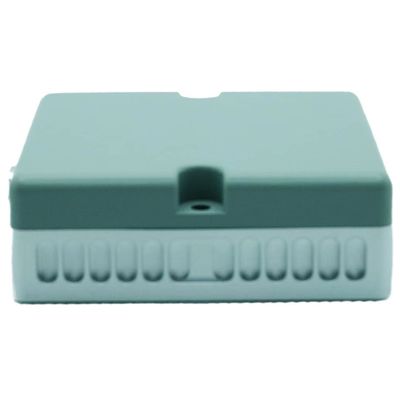

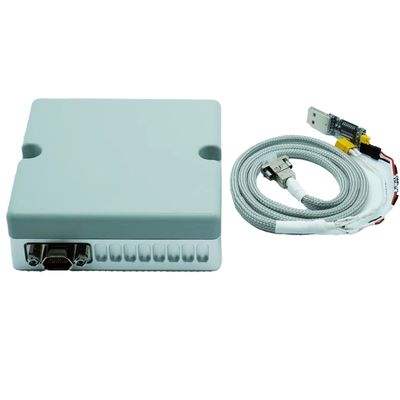

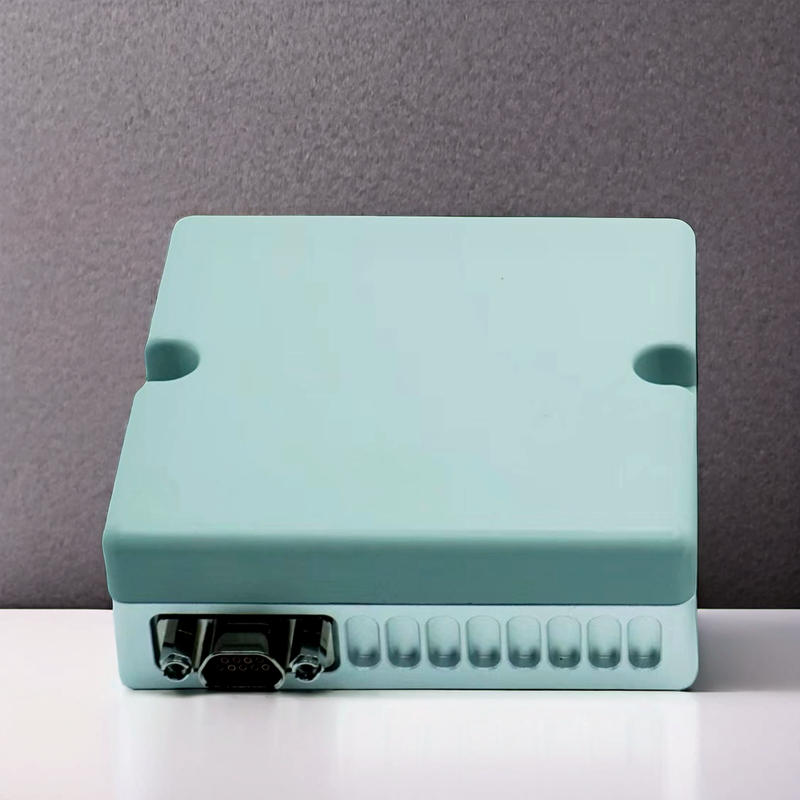

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Model: FPD24005-66-GNSS-12V. This advanced anti-jamming antenna protects platforms from both unintentional interference and malicious attacks, significantly enhancing PNT (Positioning, Navigation, and Timing) information security.

Product Features

Advanced anti-deception capabilities
Jamming power detection for convenient calibration and system testing
Supports secondary development with spectrum monitoring and histogram analysis
4-array element single-frequency anti-jamming (B1, L1, and E1 frequency points)
Built-in navigation module outputs positioning information via NEMA0183 protocol

Key Performance Indicators

Anti-Interference Capability

Unidirectional interference: >85dBc
Multi-directional interference: >65dBc

Interference Types

Decoy jamming
Band-limited white Gaussian interference
Spread spectrum matched spectrum interference
Pulse jamming and sweep jamming
Mixed interference

Additional Specifications

Anti-jamming airspace: Azimuth 0°-360°, Elevation -90°-90°
Dimensions: (66 ± 0.5)mm * (66 ± 0.5)mm * (22 ± 0.5)mm
Power consumption: 7W (normal temperature, including positioning module)
Weight: <150g

Interface Description

J30J-9ZKP Pin Definition

Pin No.	Definition	Remark
1/2	VCC12V	Power supply 12V
3/4	GND	Power supply 12V
5	UART_TXD1	Upgrade serial port, TTL level
6	UART_RXD1	Upgrade serial port, TTL level
7	UART_DGND	Ground
8	UART_TXD2	Serial port of positioning module, TTL level
9	UART_RXD2	Serial port of positioning module, TTL level
