Fiber-Optic Azimuth True-North Finder for Geotechnical Survey

Nombre De La Marca:	FIREPOWER
Número De Modelo:	NF102
Cuota De Producción:	1
Precio:	2000$
Condiciones De Pago:	LC, T/T, Unión Occidental
Capacidad De Suministro:	500/mes

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

Porcelana

Precisión de búsqueda del norte (1σ):

0.7 °

Dimensiones del producto:

60x60x60 mm

Consumo de energía:

≤1w

Rango de ángulos de inclinación:

± 15

Detalles de empaquetado:

Esponja + cartón

Capacidad de la fuente:

500/mes

Resaltar:

fiber-optic true-north finder

geotechnical survey azimuth sensor

gyro sensor with true-north detection

Descripción del Producto

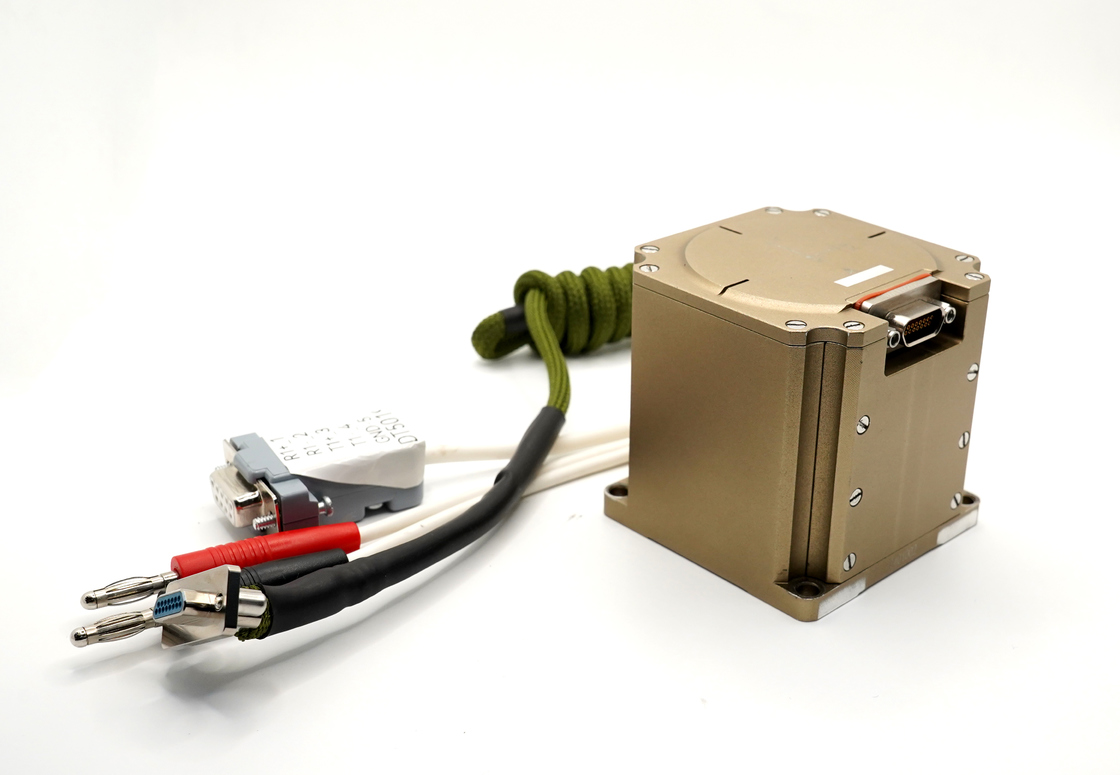

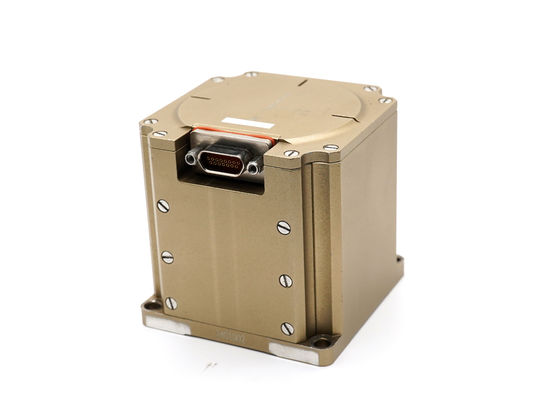

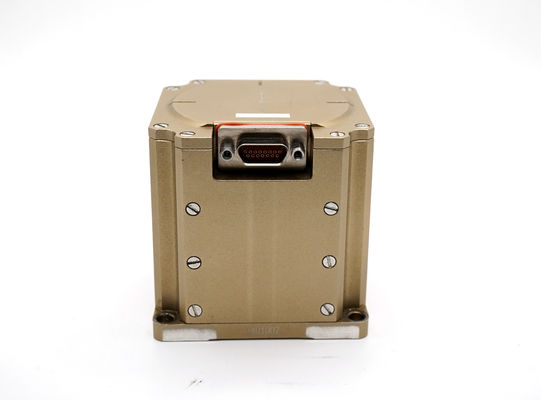

Fiber-Optic Azimuth True-North Finder for Geotechnical Survey

The Fiber Optic Gyroscope (FOG) North Finder is a precision instrument used to determine true north quickly and accurately without relying on GPS or magnetic fields. It measures the Earth's rotation angular velocity through high-precision fiber optic gyroscopes and calculates azimuth information for navigation and orientation applications. Suitable for land vehicles, ships, and defense systems requiring reliable north-seeking performance.

Technical Specifications

Supply voltage: 9 ~ 12 V

Product dimensions: 60X60X60/46X53(4XM4)

Product weight: ≤ 400 g

Operating temperature: -30℃~+65℃

Storage temperature: -55℃~+85℃

Main Parameter Indexes

Table 1: Parameter Index
Project	Unit	Industrial grade NF-102
Output mode		RS422/RS232
Connector		J30JM-15ZKP
Power consumption	W	≤1
Azimuth error	°	±0.7
Navigation tracking error	°	±0.7 (≤5min, rotation speed ≤10°/s)
Tilt adaptability	°	±15

J30JM-15ZKSP Wiring Definition

Table 2: Wiring Definition
Serial number	Definition	Type	Interface
1	R-	Input	RS422 user interface
2	R+	Input
3	T+	Output
4	T-	Output
5	IO+	Input	External North Seeking Switch
6	IO-	Output
7	+12VGND	Input	Power ground
8	+12VGND	Input
9	RS232_GND	GND	RS232 user interface
10	RS232_TX	Output
11	RS232_RX	Input
12	NC	Reserved
13	NC	Reserved
14	+12V	Input	12 Power supply input
15	+12V	Input
